Hand Tool Opening DIY Handmade

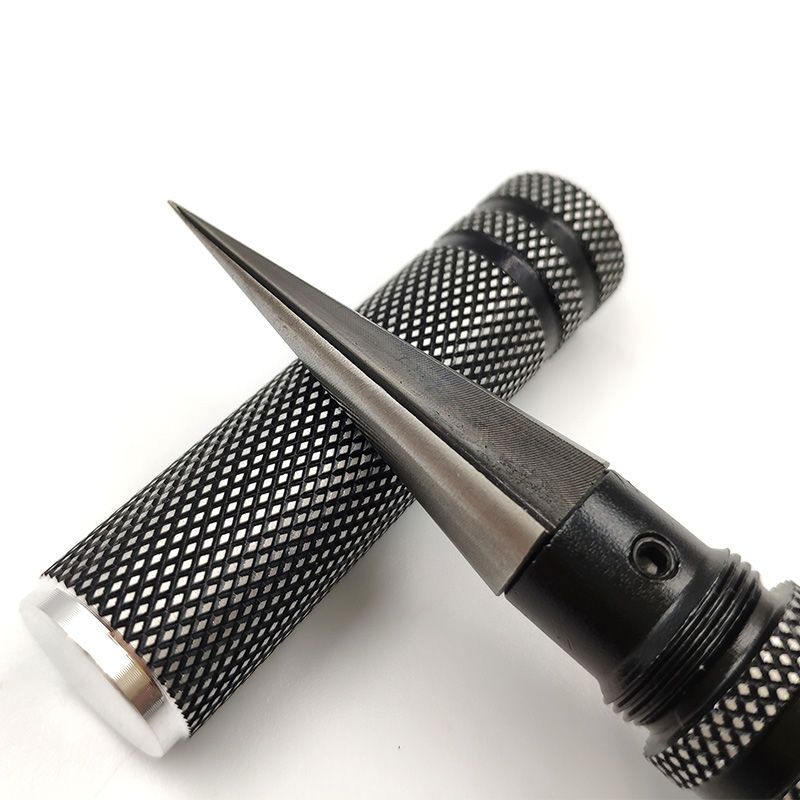

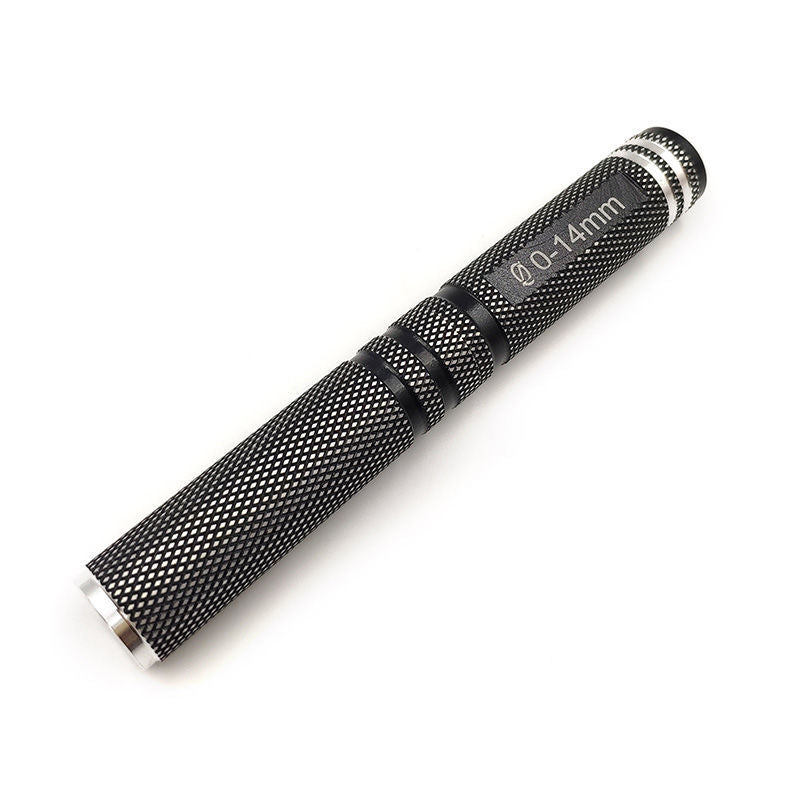

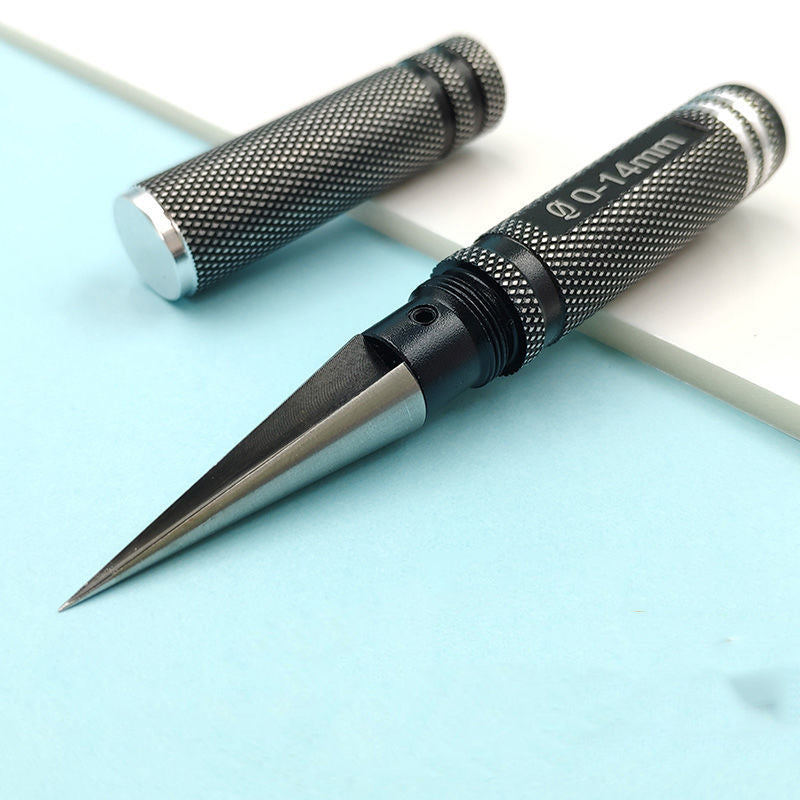

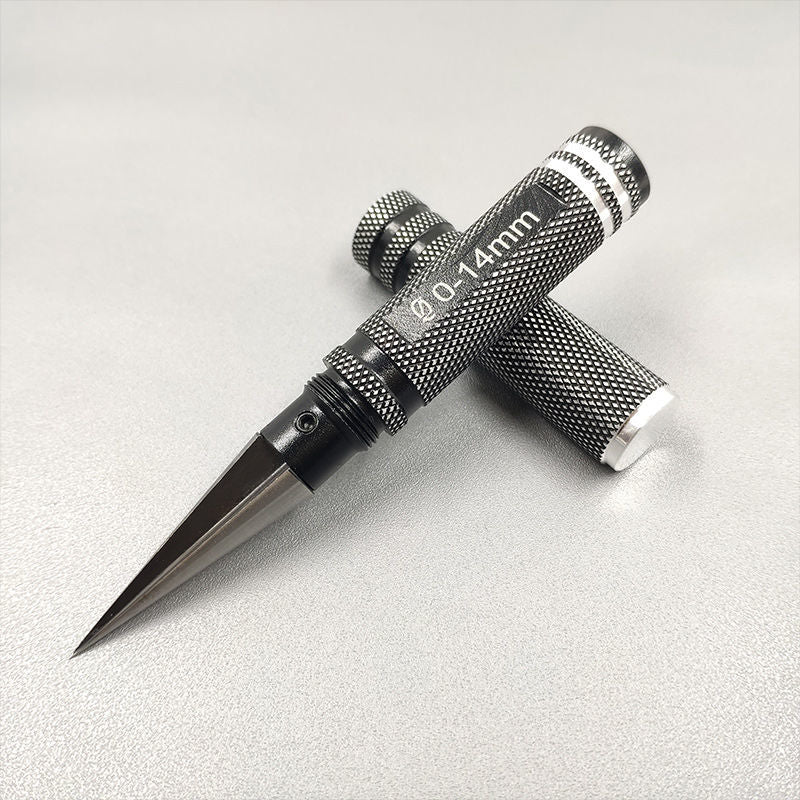

The Hand Tool Opening DIY Handmade is a hand-held hole expander built for enlarging and shaping openings in soft sheet materials. The working end is a tapered reamer with a polished cone that widens from a fine point to a broader base, so it opens a pilot hole gradually into a clean tapered bore. The body is finished in a knurled black grip that sits comfortably in the hand, with a bright metal collar and an end cap that give the tool a tidy, workshop-ready look. A clear marking on the handle shows the working aperture range, and the whole piece is light enough to use one-handed on a bench or out in the field.

This expander is made for plastic boards and wooden boards, where it turns a small drilled starter hole into a smooth tapered opening. The reamer head carries two debris grooves along the top, which let shavings clear as you work instead of packing into the cut. The shaft pairs a high-hardness alloy steel cutting cone with an engineering plastic handle, a combination chosen for rigidity at the tip and a light, warm grip at the hand. On plastic it reams cleanly; on wood it opens a pilot hole into a controlled taper without cracking the surrounding material. It is a straightforward hand tool for makers, repairers, and anyone who needs to resize holes without reaching for a power drill.

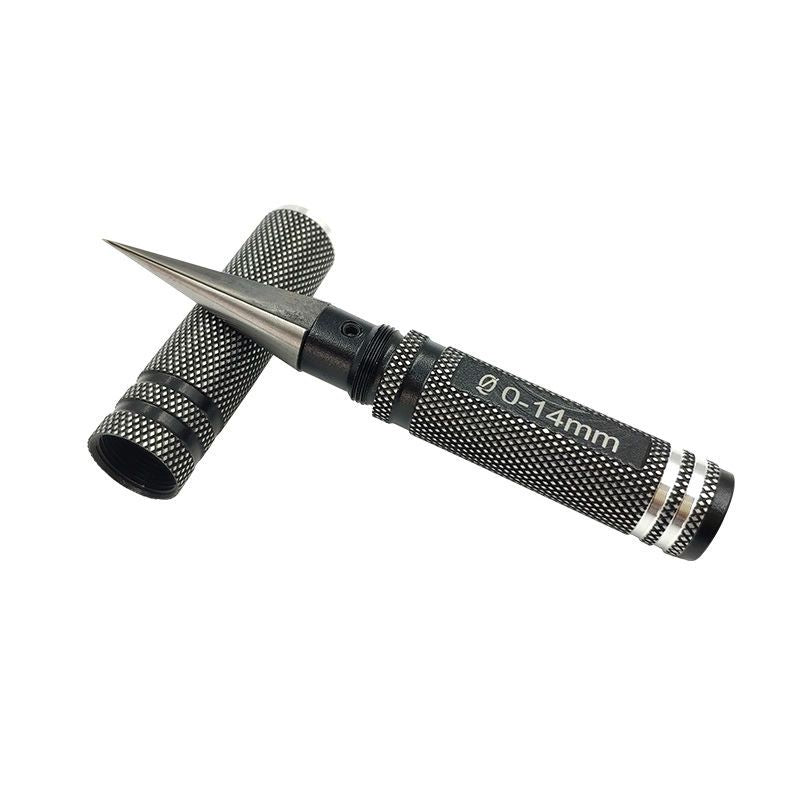

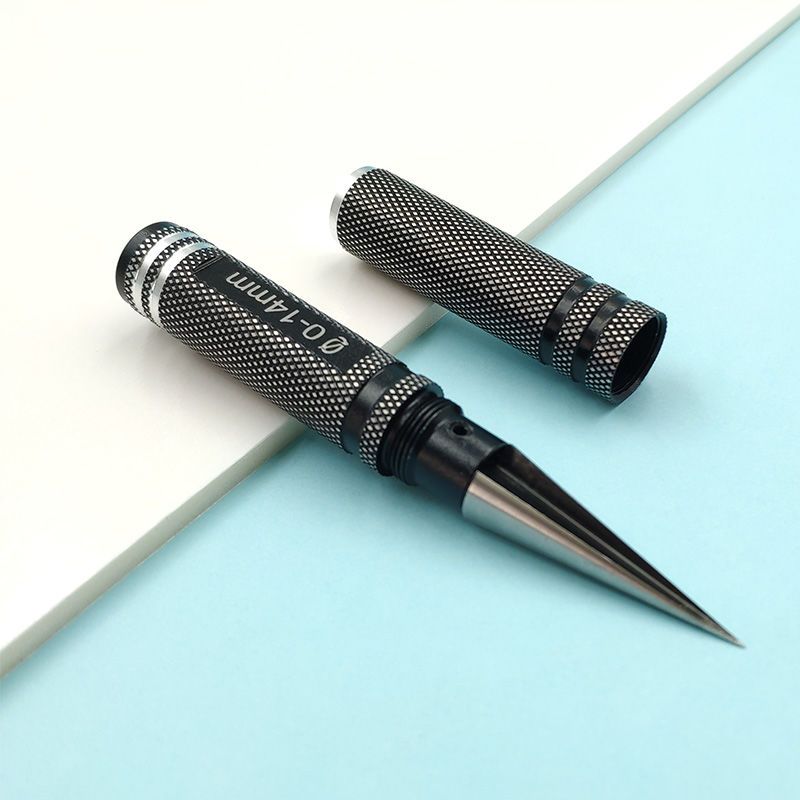

When the job is done, the tool slips into a metal pen cap that covers the cone for safe storage and transport. The cap threads on over the collar and keeps the sharp tip from contacting other items in a drawer or a bag. Because the whole tool is compact and slim, it tucks into a pencil case, a toolkit pocket, or a small pouch without adding bulk. The knurled grip gives positive control during reaming, and the simple two-part build means there is little to wear out or maintain. It is the kind of quiet, single-purpose hand tool that earns a permanent spot in a DIY kit.

Key Features

• Tapered reamer head opens small pilot holes into clean tapered bores in plastic and wood
• Two top debris grooves channel shavings out of the cut as you turn the tool
• Knurled handle gives a secure grip for controlled one-handed reaming
• Rigid metal cutting tip paired with a light molded handle for balanced carry
• Metal safety cap covers the cone for drawer and bag storage
• Compact slim shape stores in a pencil case, toolkit, or pouch

Specifications

• Product Material: High-hardness alloy steel reamer with an engineering plastic handle
• Expandable Aperture: 0–14mm
• Product Weight: approximately 53.11g
• Pen Body Length: 12.7cm
• Total Length With Metal Cap: 13.5cm

How to Use

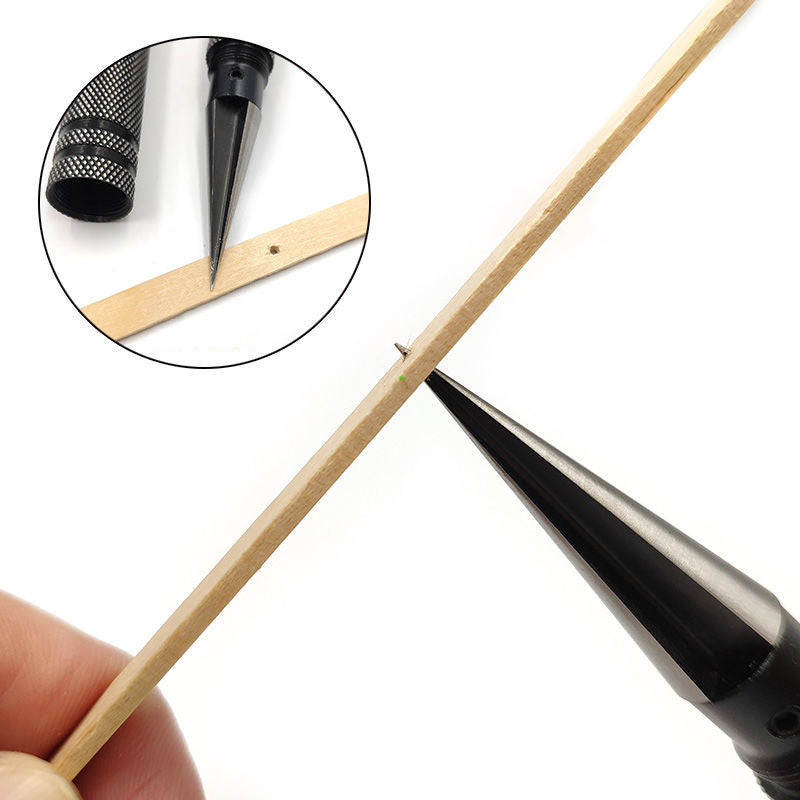

• Start by drilling a small pilot hole in the plastic or wooden board with a standard drill.
• Insert the tapered reamer into the pilot hole and rotate it back and forth to widen the opening into a smooth taper.
• The two grooves along the top of the reamer channel debris out of the cut as you work.

Important Notes

• This tool is intended for plastic and wooden boards. Do not use it on metal, as the reamer is not made for hard metal surfaces.
• When the tool is not in use, fit the metal pen cap over the cone to cover the tip for safe storage.

Frequently Asked Questions

Q1: What materials can this hole expander work on?
A1: It is built for plastic boards and wooden boards, where it opens and shapes holes cleanly. It should not be used on metal, since the reamer is meant for softer sheet materials.

Q2: How do I use it to enlarge a hole?
A2: Drill a small pilot hole first, then insert the tapered reamer and rotate it to widen the opening into a smooth taper. The two top grooves clear debris as you turn, keeping the cut clean.

Q3: What is the tool made from?
A3: The cutting end uses a hard metal for a rigid tip, and the grip is a molded plastic body that stays light in the hand. The two materials are chosen so the tip holds its edge while the handle stays comfortable.

Q4: How should I store it when not in use?
A4: Fit the metal pen cap over the cone after each job to cover the sharp tip. The cap keeps the tool safe in a drawer, a bag, or a toolkit without scraping other items.

Q5: Is it suitable for a basic DIY kit?
A5: Yes, the slim build and light handle make it a practical addition to a maker or repair kit. It handles hole resizing on plastic and wood without the need for a power drill.

Conclusion

The Hand Tool Opening DIY Handmade gives makers and repairers a simple way to resize holes in plastic and wooden boards by hand. The tapered reamer, knurled grip, and metal safety cap work together as a light, single-purpose tool that stores almost anywhere. Keep it in a DIY kit for the moments a pilot hole needs to become a clean, controlled taper.
